RXM-300 Reflex Sight Parts

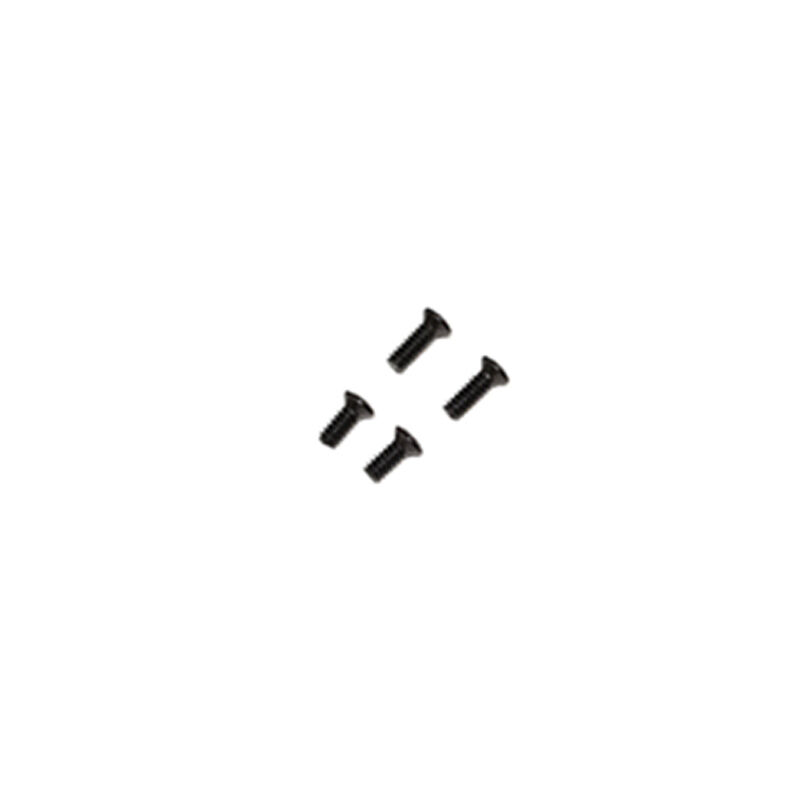

Part BU-RXM300LPSS

This is a replacement set of 2 screws of each of the following to attach the unit to the mount: Type A:  6-32 UNC 9.8mm long Use for direct mount applications with shallow tapped holes. (Screws protrude from the sight base approximately 2.4mm.) and Type B:  6-32 UNC 11.8mm long Use with mount or for direct mount applications with deeper tapped holes. (Screws protrude from the sight base approximately 4.4mm.)

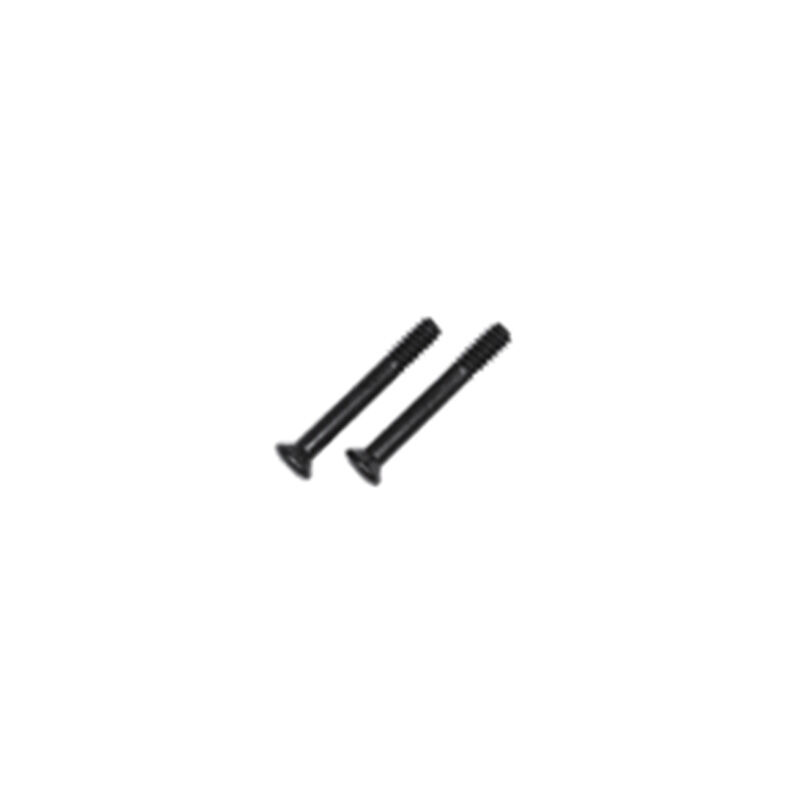

Part BU-RXM300HRSS

This is a replacement set of 2 screws, 6-32 UNC 25.5 mm long, to be used with the Red Dot mount and High-Rise Spacer.

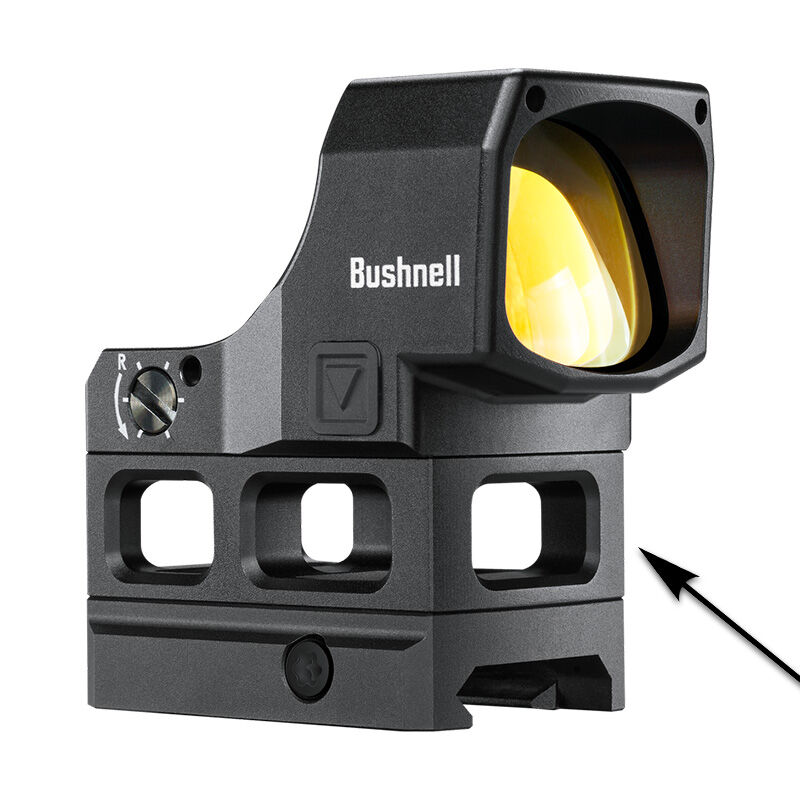

Part BU-RXM300HRS

This is a spacer that raises the mounted Red Dot to a higher level.

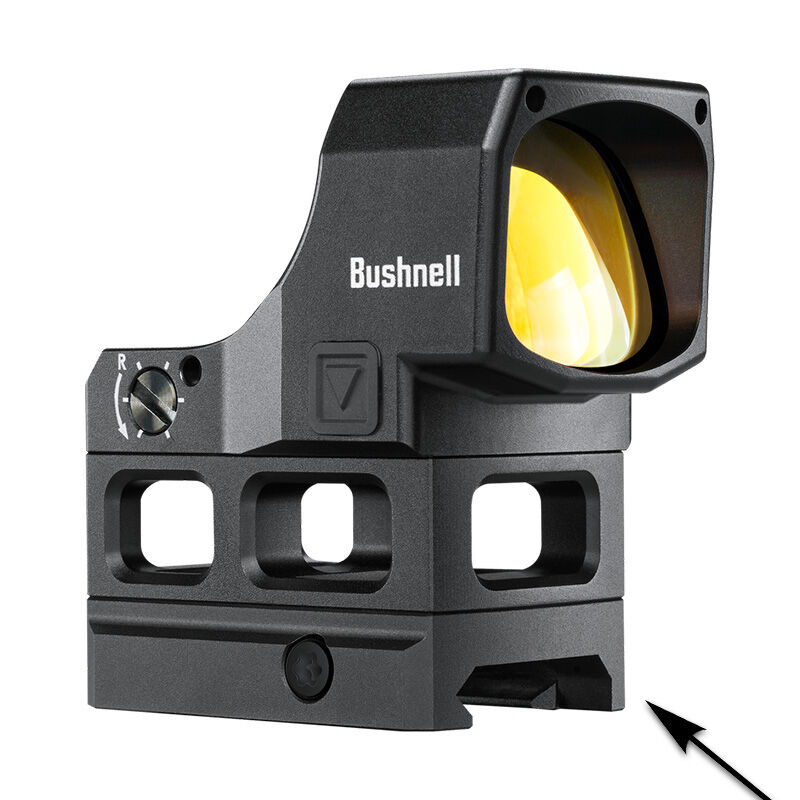

Part BU-RXM300LPM

This is a Low-Profile Mount for mounting on a Picatinny rail.

Part BU-RXM300CBLT

This is a replacement cross bolt to attach the RXS300 Red Dot to the Picatinny Rail.

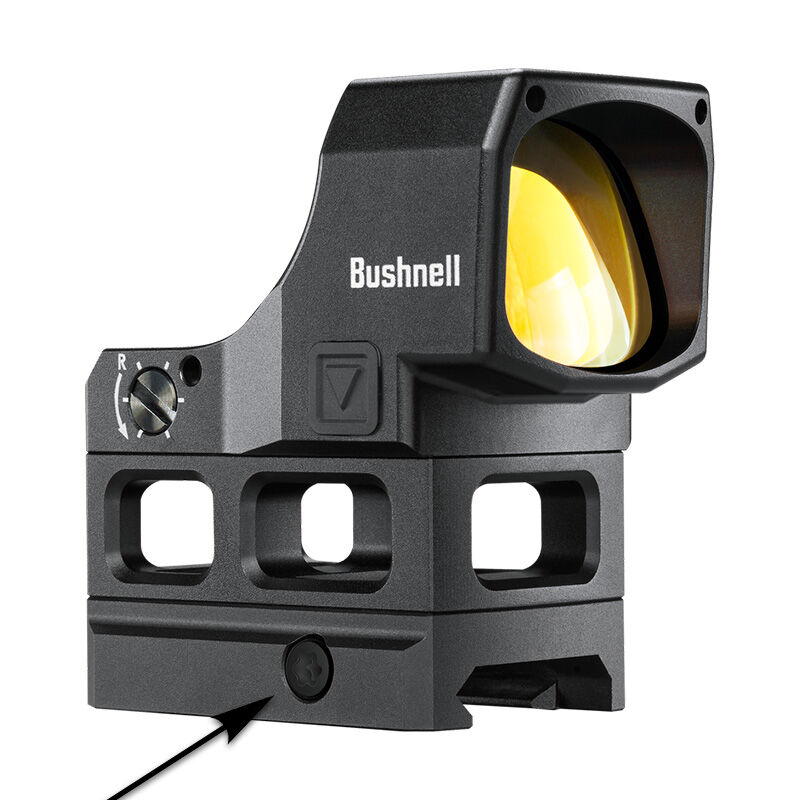

Part BU-RXM300MTCL

This replacement clamp is used for securing the mount to the rail with a cross-bolt.

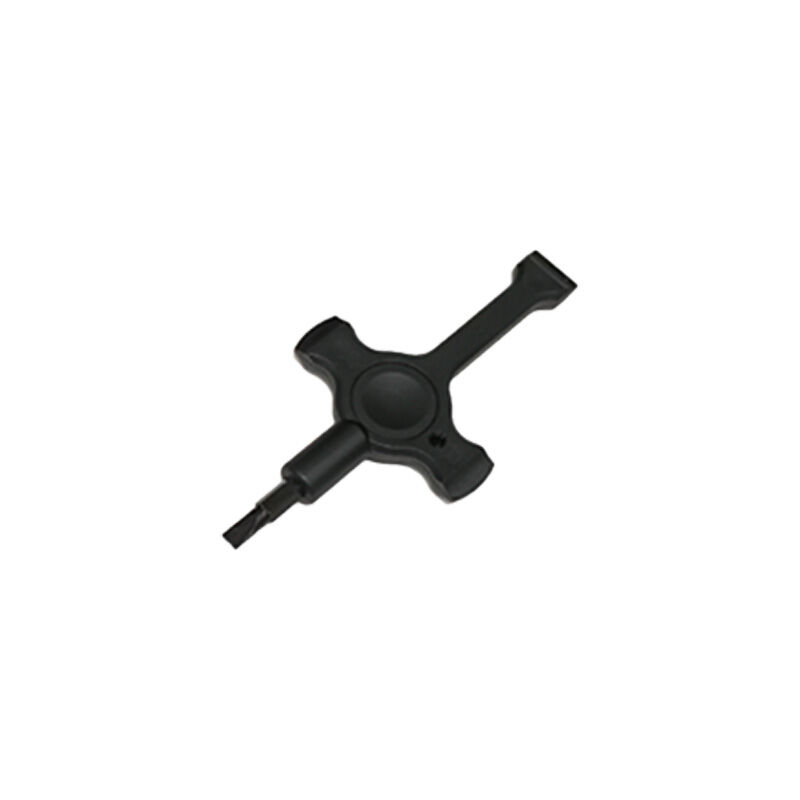

Part BU-RXM300BCT

This replacement part is a tool used to access the battery compartment and make adjustments to the windage and elevation of the unit.

Part BU-RXM300CVR

This is a replacement cover to protect the RMX300 Red Dot lens.

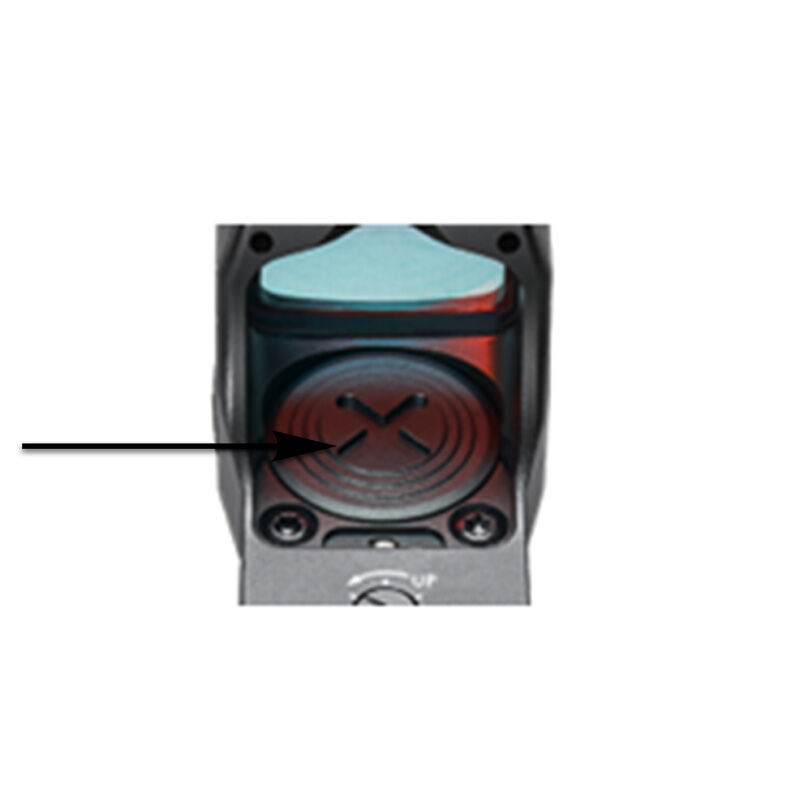

Part BU-RXM300BCC

Replacement battery compartment cap to attach to the Red Dot.
